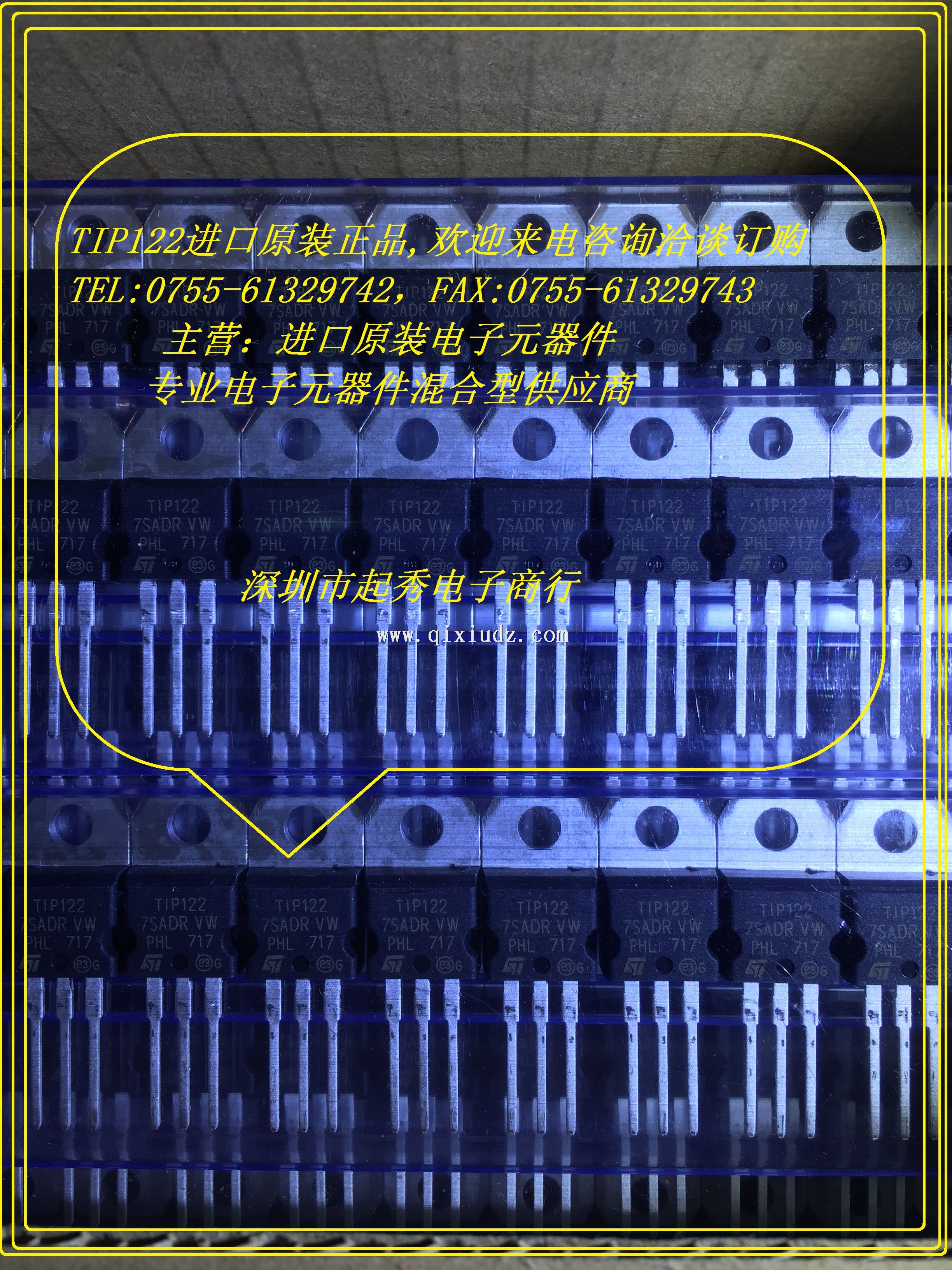

TIP122进口全新原装，欢迎来电咨询洽谈订购。

TIP122.pdf

DESCRIPTION
The TIP120, TIP121 and TIP122 are silicon
Epitaxial-Base NPN power transistors in
monolithic Darlington configuration mounted in
Jedec TO-220 plastic package. They are intented
for use in power linear and switching applications.
The complementary PNP types are TIP125,
TIP126 and TIP127, respectively.

ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
NPN TIP120 TIP121 TIP122
PNP TIP125 TIP126 TIP127
VCBO Collector-Base Voltage (IE = 0) 60 80 100 V
VCEO Collector-Emitter Voltage (IB = 0) 60 80 100 V
VEBO Emitter-Base Voltage (IC = 0) 5 V
IC Collector Current 5 A
ICM Collector Peak Current 8 A
IB Base Current 0.1 A
Ptot Total Dissipation at Tcase £ 25 oC
Tamb £ 25 oC
65
2
W
W
Tstg Storage Temperature -65 to 150 oC
Tj Max. Operating Junction Temperature 150 oC
